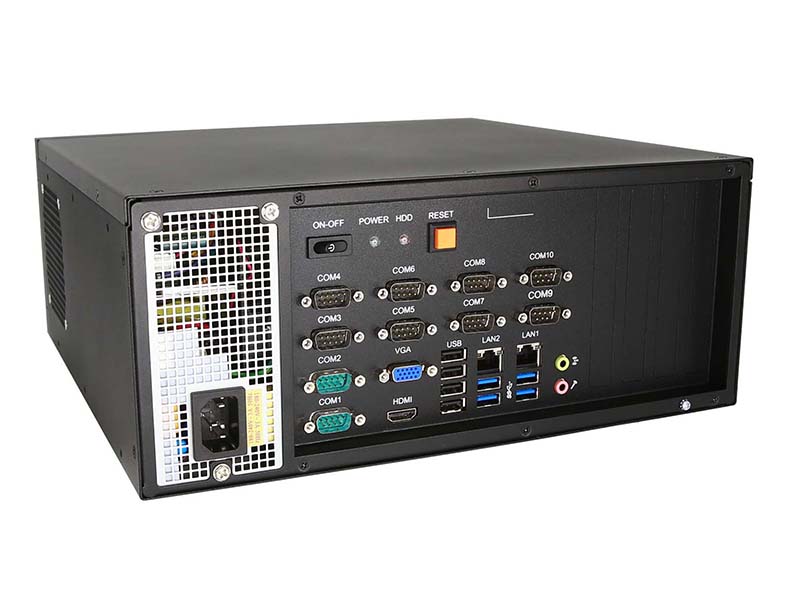

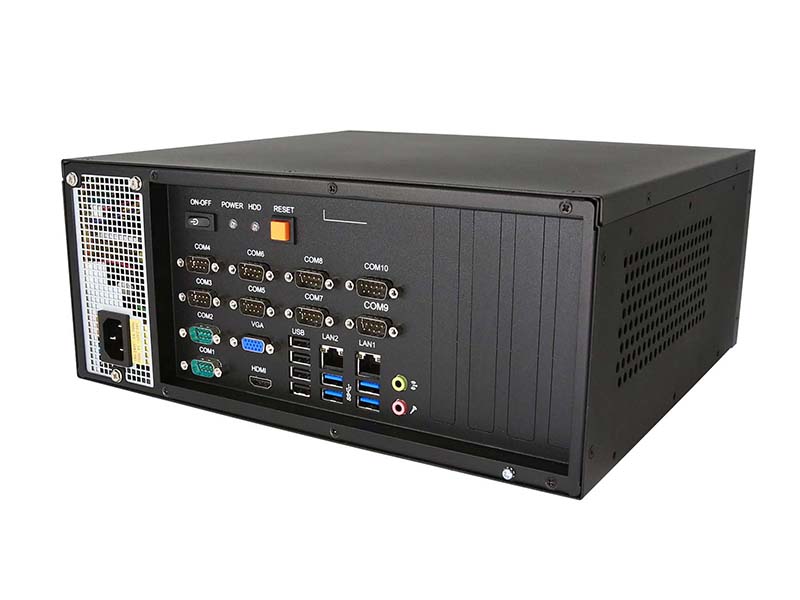

3U工控機 CEFS-DM2A-H11A

3U Barebone, 2 display(VGA/HDMI), dual lan,8 x USB, 10 x COM, multiple extensions

在線咨詢全國熱線
400-816-0035

支持Intel^? 6th/7th Gen. Core? i3/i5/i7, Pentium^?/Celeron^? 高性能處理器
采用H110芯片組
支持雙千兆網口
支持 VGA、HDMI雙屏異顯
內置PCI、PCIe插槽，支持多種模塊擴展
支持 10 x COM(2 x RS232/422/485, 8 x RS232)，8 x USB（4 x USB2.0, 4 x USB3.0）
支持Ennoconn USB SR Pro技術

產品規格

系統 System

處理器 Processor	Intel^? 6th/7th Gen. Core ? i3/i5/i7, Pentium^?, Celeron^? processor, LGA1151 Socket
芯片組 Chipset	Intel^? H110 Chipset
內存 Memory	DDR4 1866/2133 MHz, 2 x UDIMM Slot, up to 32GB
圖形 Graphics	Intel^? HD Graphics, dual display
存儲 Storage	3 x SATA 3.0, 1 x mSATA
操作系統 OS	Windows 7/8/10, Linux

外部接口 External I/O

網口 Ethernet	1 x RJ45 Intel^? I211AT GbE (10/100/1000 Mbps) 1 x RJ45 Intel^? I219LM GbE (10/100/1000 Mbps)
顯示 Video	1 x VGA: max resolution up to 1920 x 1200 1 x HDMI: max resolution up to 2560 x 1600
音頻 Audio	1 x Line-out, 1 x Mic-in
串口 COM	2 x RS232/422/485, 8 x RS232
USB	4 x USB 3.0(Support USB SR Pro), 4 x USB 2.0(Support USB SR Pro)

內部接口 Internal I/O

擴展接口 Expansion	1 x PCIe X16 Slot, 1 x PCIe X4 Slot, 2 x PCI Slot
風扇 FAN	1 x CPU Fan, 1 x System Fan
USB	1 x USB 2.0 (Type A), 1 x USB 2.0 pin header
GPIO	1 x 16-bit GPIO
LPT	1 x LPT pin header
SATA	3 x SATA 3.0, 1 x mSATA

環境 Environmental

操作溫度 Operating Temp.	0℃ ~ 40℃
存儲溫度Storage Temp.	-20℃ ~ 60℃
濕度Relative Humidity	5% ~ 95%, 非凝結狀態Non-condensing
隨機振動 Random Vibration	5~500Hz, 1Grms (HDD)operation
正弦振動 Sine Vibration	5~500Hz, 2G Non-operation
機械沖擊 Shock	10G @ 11ms operation

USB

1 x USB 2.0 (Type A), 1 x USB 2.0 pin header
GPIO	1 x 16-bit GPIO
LPT	1 x LPT pin header
PS/2	1 x PS/2
SATA	3 x SATA 3.0, 1 x mSATA

系統 System

<td style="box-sizing: border-box; margin: 0px; padding-top: 10px; padding-right: 0px; padding-bottom: 10px; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-c

處理器 Processor	Intel^? 6th/7th Gen. Core ? i3/i5/i7, Pentium^?, Celeron^? processor, LGA1151 Socket, TDP up to 65W
芯片組 Chipset	Intel^? H110
內存 Memory	Dual Channel, 2 x U-DIMM Slot, DDR3L(1.35V)1333/1600MHz, up to 16GB
